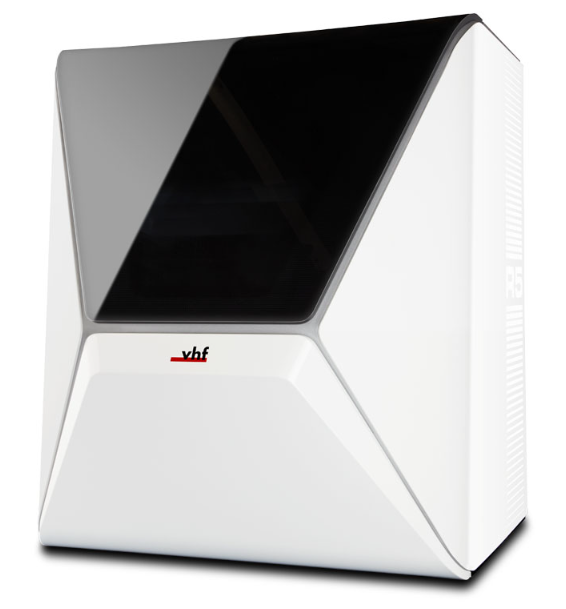

vhf R5 Milling Machine

The R5 is a highly automated milling and grinding machine with ten-fold blank changer. Revolutionize your lab and in-office lab with this ingenious wet and dry mill, combined with maximum ease of use. Includes DentalCAM software.

Ten disc changer

• automated changer holds up to 10 blanks
• pmma, wax, zirconia, composites, CoCr, plaster, glass ceramics, titanium
• 98.5mm discs, 10-40mm
• blocks up to 45×20×20mm

DIRECTCLEAN Technology for a quick switch between wet and dry

The R5 effortlessly switches between wet and dry machining. In addition to ionizers and active workspace ventilation, the machine also offers an intelligent drying function.

Wet milling

For wet machining, the R5 grinds and mills with clear water which you just have to fill into the integrated water tank. For all materials, except titanium, without any additives â?? better for your materials and without annoying disposal.

Maximum freedom regarding materials and sizes

Another highlight is the ability to process milling blanks up to 40 mm thick. Perhaps even more important is the generous tilt angle of ± 35 degrees for the spindle axis. The R5 thereby guarantees a maximum of indication variety and provides high freedom of design.

Highest precision

• Restorations in Ultra HD
• High-precision spindle with 800 watts of power and 80,000 rpm
• 3 µm repetition accuracy

Tremendous stability

• Mills and grinds the toughest materials on the market including all titanium and CoCr materials
• Proven industrial quality
• Solid cast-body for minimum vibrations

Absolute independence

• Sheer unlimited material variety in 98 mm disc format, around 40 block materials, and
• 800+ titanium and CoCr prefab abutment blanks
• Covers the broadest range of indications, due to ± 35° rotation angle in the 5th axis, and up to 40 mm disc height
